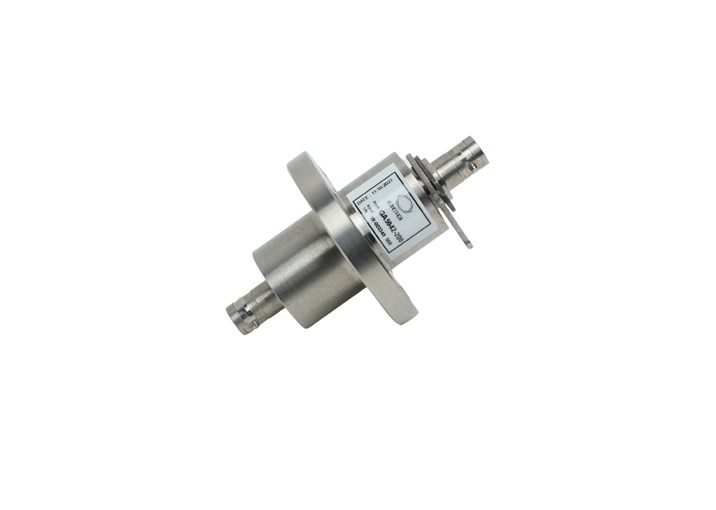

Home Catalogue FORJ - Fibre Optic Rotary Joint Single Channel - Multimode / Singlemode

Part No. GA5942-200

Single Channel 50/125

  • Weight 110g
  • Wave Length 1310 & 1550
  • Fibre Type 50/125 Graded Index
  • Connector Type ST
  • No of Channels 1
  • Mode Multimode

Specifications

Material properties

Open
Property Value Standard
Housing Material Stainless Steel 303 -

Mechanical properties

Open
Property Value Standard
Lifetime, Million Cycles >50 ISO 281
Start-up Torque (Nm) <2 -
Running Torque (Nm) Across all Temperatures 0.5 - 1.5 -

Environmental properties

Open
Property Value Standard
IP Rating IP68 IEC 60529, IEC 61300-2-45:1999
Operating Temperature Range (*c) -30 to +85 -
IP Rating Without Rated Connectors IP65 -

General properties

Open
Property Value Standard
Overall Length (mm) 59.84 -
Mounting Flange Holes 4 -
No. Channels 1 -
Termination ST -
Wavelength 1310 & 1550 Nm -

Optical properties

Open
Property Value Standard
Insertion Loss (dB) 1.5 / 3.0 IEC 61300-3-4:2012
Variation Insertion Loss (dB) 0.5 / 1.0 -
Reurn Loss (dB) Typ. / Min 27 / 24 IEC 61300-3-6:2008
